  • Asset-WE User Guide

    • Detection

      Tilt or movement that lasts less than 1 second will not be counted as movement by the device. When movement is detected, it is then analysed by the unit and if the threshold is crossed, an alarm will be generated.

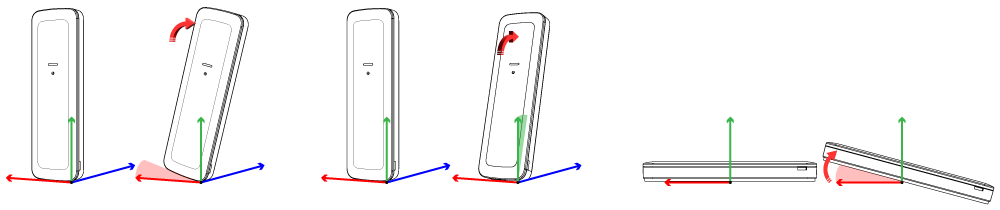

      Tilt or movement more than 4° on the x or y axis will constitute as movement.

      X Axis | Y Axis | Z Axis

      The device detects movement using gravity therefore if the device is moved slowly along the z axis, but kept perfectly level, it will not detect tilt.

      Please note: The 4° angle of alarm is an approximation.
    • Alarm and Restore

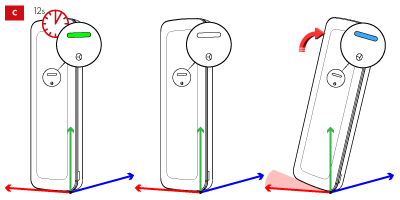

      As shown in fig a, when the device is triggered the blue LED will light up. If the device has been triggered and has not been left to stabilise and recalibrate it’s ‘Home Position’, it cannot be triggered again. As shown above in fig c, once the device has recalibrated to it’s ‘Home Position’ again and the green LED flashes; it can be triggered again.
    • Home Position

      The “Home Position” is the installation position of the device. Once a “Home Position” has been determined, and confirmed by the device, if the device is moved, it will signal to the panel and if the system is armed,  will go into alarm.

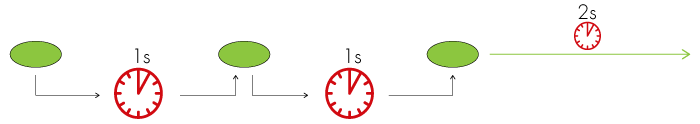

      The Green LED will flash twice rapidly and then one long flash to indicate it has recalibrated its “Home Position”.

      The device will calibrate and confirm it’s at the “Home Position” after the following cases:

      • When the lid is closed on the device (closing the tamper)
      • If the device tamper is opened and then closed
      • 12 seconds of no movement

      12 second reset

      The device can be relocated wherever the user sees fit when the system is disarmed.

      When the device is moved it will flash blue to indicate an alarm however, if the system is disarmed, it will not react.

      To set a new home position,

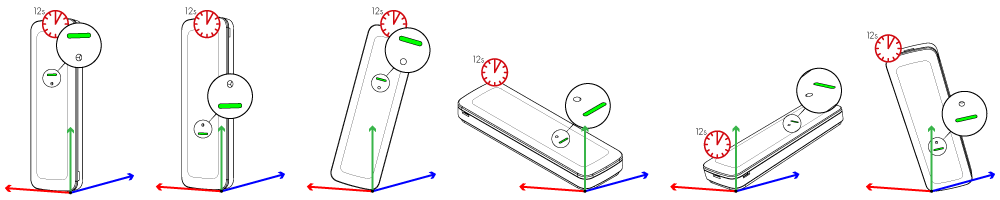

      If the device is left stationary for 12 seconds, the device will recalibrate the accelerometer to the new position and this will now be the “Home Position”. This can be any orientation, at any angle, as shown below.

    • Battery Information

      The batteries supplied have been chosen to provide long service life whilst, for safety reasons, having limited output current.
      The battery is protected on purchase by a piece of plastic that must be removed for operation. When disposing of the product, the battery must be removed and disposed of separately in accordance with the local regulations

      Replacing the batteries

      Important: When replacing the batteries in the device, both batteries must be replaced at the same time.
    • Product Warning Information

      For electrical products sold within the European Community. At the end of the electrical products life, it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.
      To prevent possible damage to components, any static charge on your body needs to be eliminated before touching the inside of the unit. This can be accomplished by touching some grounded/earthed metallic conductor such as a radiator/pipework immediately before replacing the batteries.

    • Warranty

      This product is sold subject to our standard warranty conditions and is warranted against defects in workmanship for a period of two years (battery excluded). In the interest of continuing care and design, Pyronix Ltd reserves the right to amend specifications, without giving prior notice. Please see the control panel programming manuals for further information or visit: www.pyronix.com/uk/terms-conditions-sales/
